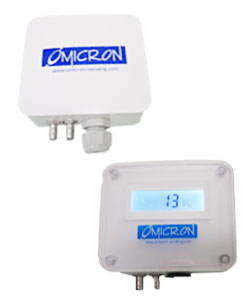

Model |
: M11 |
|
Range |
: -500 to 500 mmwc |
|
Output |
: 4 - 20 mA |
|
Accuracy |
: ±0.25% of F.S |
|
Media |
: Air / Gases |
|
Display |
: None |
|
 |
Special Features : |
|
LCD backlit digital display |
|
Auto zero calibration when power on |
|
The imported pressure core |
|
M11 Range:-1,000Pa~1,000Pa (Minimum range from 0~100Pa) |
|
M11 Range : -10,000Pa~10,000Pa (Minimum range from 0~1,000Pa) |
|
Adjustable differential pressure range |
|
Housing with simplified mounting systems |
|
This transmitter is apply to low differential pressure display and signal collection in HVAC, industrial equipment, intelligent building, test bench and other fields. |
|
|
Specifications : |
|
Range |
: |
M11 -1,000 ~ +1,000 Pa ( Minimum range from
0 ~ +100 Pa ) |
| |
|
|
M11 -10,000 ~ +10,000Pa ( Minimum range from
0 ~ +1,000Pa ) |
|
Precision |
: |
±1.0% FS |
|
Pressure Unit |
: |
M11 / Pa, mmH2O, mbar, inWG, |
| |
|
|
M11 mmHG, daPa, KPa, hPa |
|
Tolerated |
: |
M11 15,000Pa |
|
Overpressure |
: |
M11 150,000Pa |
|
Output signal |
: |
4 ~ 20 mA and 0 ~ 10 Vdc ( 2 signals available ) |
| |
|
|
16 ~ 30 Vdc/Vac ( 2 wires ) |
|
Power Supply |
: |
24Vdc adaptor power supply |
| |
|
|
220Vac |
|
Power Consumption |
: |
1.5W |
|
|
|
|
