Parameter |
: pH |
|
Range |
: 0 to 14% PH |
|
Display |
: Optional |
|
Accuracy |
: ± 0.5% / 1.0% of F.S |
|
Power Supply |
: 230V AC |
|
Max Pressures |
: Upto 7 Bar |
|
 |
Special Features : |
|
Low Cost OEM |
|
Automatic Temperature Compensation |
|
Front Panel Calibration |
|
Panel Mounting |
|
Low Power LED Display |
|
Over Voltage Protection |
|
|
Applications : |

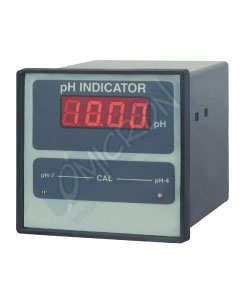

PH1011 PH Transmitter is one easy to use panel mounting transmitter for
continuous monitorig. Available with bright red LED display, the meter can display the PH of your solution together with a very high accuracy.With Internal temperature compensation, PH1011 delivers fast and high accuracy. Precision pH transmitter immediately detects changes in solution
pH. With a 230V AC power supply, This instrument features BNC composite
electrode making it easier in the world to facilitate the replacement of
used electrodes. |
|
Specifications : |
| |
|
pH Range |
: 0.00- 14.00 |
|
Accuracy |
: ±0.5% of F.S Typ ± 1 Digit |
|
Operating Temp. |
: - 20 C to 70 C |
|
Storage Temp. |
: - 30 C to 85 C |
|
Power Supply |
: 230V AC |
|
Electrode Connection |
BNC Pins |
|
Display |
: 3 1/2 Digit, 12.5mm LED Display |
|
Electrode Type |
: mV |
|
|
Output |
: 4-20 mA, 2 Wire |
|
Enclosure |
: Flame Retardant ABS Moulded Housing |
|
Mounting |
: Panel Mounting |
|
Cut Out |
: 92mm x 92mm |
|
Front Facia |
: 96mm x 96mm (145mm Depth) |
|
Calibration |
: pH4 and pH 7 Calibration |
|
|
