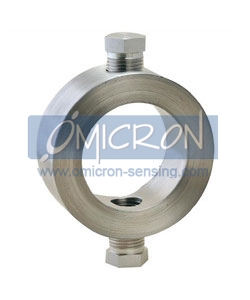

Type |
: Flushing Ring |
|
Model |
: FR |
|
MOC |
: SS316 / Exotic Materials |
|
Max Temp |
: 220°C |
|
Max Pressure |
: 400 Bar |
|
Size |
: 1/2" - 24" |
|
 |
Special Features : |
|
With Double Flushing Ports. |
|
Suitable With Flanged, Pancake Or Inline Diaphragm Seals. |
|
Available In All Exotic Material Grades. |
|
|
Applications : |
| The flushing ring is designed to be sandwitched between the process flange & the diaphragm seal. Material collected in front of diaphragm can be flushed out through the flushing ports. |
|
Specifications : |
| Standard Version : |
|
Flange Size |
: 1/2" to 5" as per ANSI B 16.5 |
|
Material |
: AISI316SS |
|
Number of ports |
: Two |
|
Port Connection |
: 1/4" NPT(F) with Male plug |
| |
Sealing Face |
: Suitable to Raised Face of Flange |
|
|
| |
|
|
