	High accuracy measurement
	Non-intrusive. Clamp-on installation. Easy and fast
	No moving parts. Maintenance free
	Light weight, compact design
	Suitable for all commonly used pipe materials and liquids
	Suitable for pipes from 1” ~ 120” (DN25~DN3000mm)
	Rechargeable battery for 10 hours of operation
	Built-in data logger and flow totalizers
	Self-explanatory user interface. Easy to operate
	StufManagerT M PC software for data download and real-time data acquisition
	Signal quality tracking and self-adaptation for robust performance
	USB interface for PC link

Description:

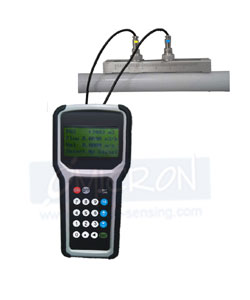

S300H Ultrasonic Flowmeter is one of the most powerful portable flowmeters available for liquid flow measurement. It is carefully designed so that it is very compact and easy to use. You can use one hand to hold as well as to operate the flowmeter. The user interface is self-explanatory and very easy to follow. The unique
clamp-on fixture design makes the installation very simple and no special skills or tools required.

Specifications :

Linearity	:	Better than 1%
Repeatability	:	0.5%
Accuracy	:	±1% of velocity reading or ±10mm/s, whichever is bigger
Response Time	:	0-999 seconds, user-configurable
Velocity	:	-52ft/s ~ +52ft/s (-16m/s ~ +16m/s), bi-directional
Pipe Size	:	1" ~ 120" (DN25mm ~ DN3,000mm)
Pipe Material	:	All metals, most plastics, lined pipe
Units	:	English (U.S.) or metric
Totalizer	:	Three 7-digit totalizers for totalizing net, positive and negative flows
Liquid Types	:	Virtually all liquids (full pipe)
