	Compact and robust design
	High accuracy, better than ±1%
	No moving parts, maintenance-free
	No pressure drop
	Bi-directional
	Wide measurement range, ±16m/s
	Built-in flow totalizers
	Large turn-down ratio
	Suitable for most pure liquids and liquids with minor particles
	Compatible with clamp-on, insertion and flow-cell transducers
	Pipe size selectable from DN10 to DN5000mm
	Automatically match transducer to liquid property with proprietary signal quality tracking and self-adaptation technology
	Local LCD display and 4 keys
	Optional PC Software for real-time data acquisition
	Isolated RS-485 interface with power surge protection. Supports MODBUS. Well suited for reliable flowmeter networking
	Optional input/output, such as isolated 4-20mA output, OCT output
	IP65 weather-proof enclosure
	Power supply 9~24VDC, less than 1.2Watt

Description:

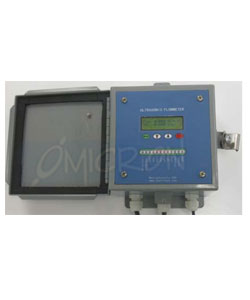

The S301 ultrasonic flowmeter is an economical but robust flowmeter. It utilizes cutting-edge technologies, such as balanced ultrasound transmission, digital signal processing, self adaptation, etc., to achieve high performance.

The S301 can be equipped with a pair of clamp-on transducers to measure liquid flow rate from outside of a pipe non-intrusively. It can also be equipped with a pair of insertion transducers or a flow-cell transducer to measure liquid flow with excellent long-term stability and high accuracy.

• S301B clamp-on flowmeter
• S301C insertion flowmeter
• S301G flow-cell flowmeter

Due to the proprietary signal quality tracking and self-adaptation algorithm, S301 is able to tune itself to the optimal condition when the liquid property changes or different transducer is connected

Specifications :

MAIN UNIT
Repeatability	:	Better than 0.2%
Accuracy	:	±1% of reading, plus ±0.006m/s in velocity when working with Omicron’s transducers.Could be better for flow-cell transducer
Response Time	:	0.5s. Programmable up to 99s
Velocity	:	-16 ~ +16m/s (-52 ~ +52 ft/s), bi-directional
Display	:	LCD with backlight. 2 x 20 letters. 4 tactile-feedback membrane keypad.,displaying flow rate, totalizer values, velocity, time, analog inputs, temperature, thermal energy, etc.
Units	:	English (U.S.) or metric
Signal Outputs	:	Current output (optional): 4-20mA for flowrate, velocity or sound speed. Impedance 0-1k. Accuracy 0.1%
		OCT output (optional): one channel, 0.1A/24VDC. Relay (optional): 1A/125VAC or 2A/30VDC. Can be programmed as pulse signal for flow totalization (positive, negative and net rates), ON/OFF signal for relay drive or alarm drive, batch control, etc.
